Brief Introduction
Beta 2.5 |

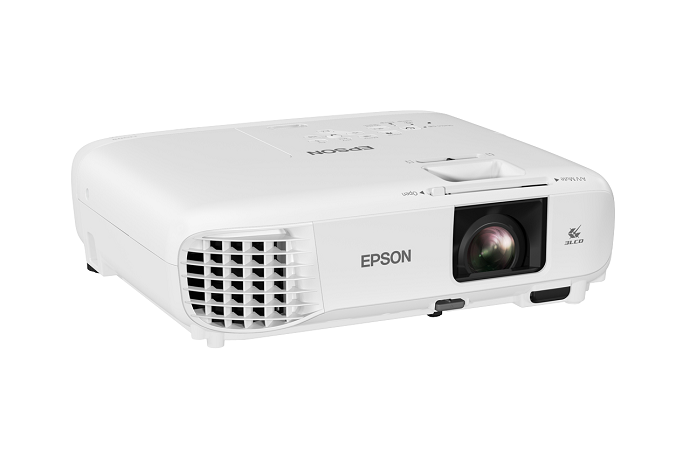

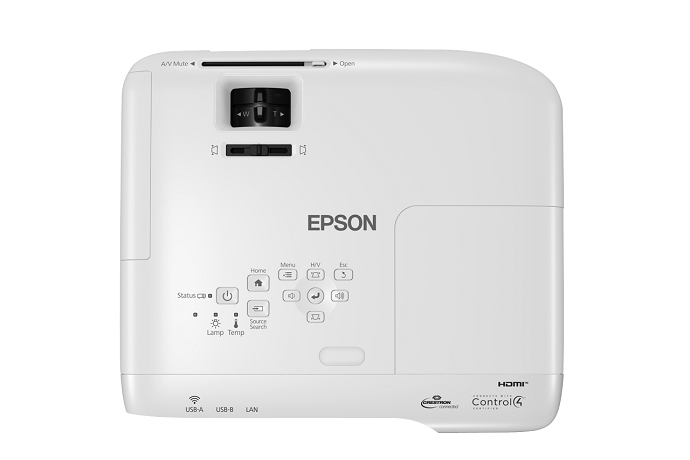

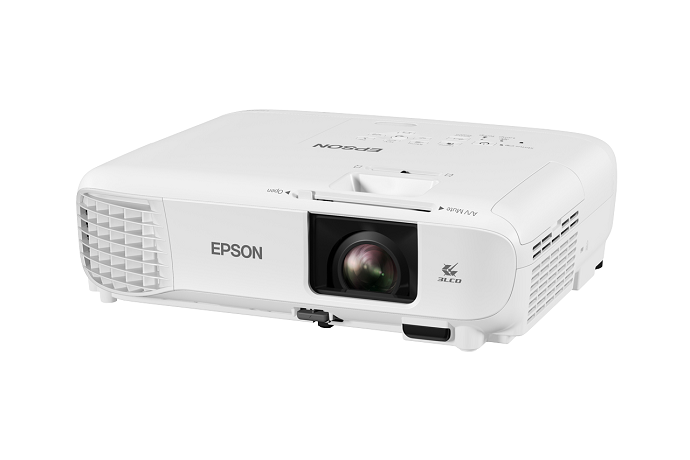

The EB-118 LCD projector from Epson has 3800 Ansi-Lumen, a contrast of 16000:1 and an XGA 1024 x 768 resolution. The lamp life is specified by the manufacturer as 17000 hours, which is over 23.3 years with a daily viewing time of 2 hours. Built-in horizontal and vertical keystone correction provides freedom when positioning the projector. An image width of up to 537 cm is possible as the projector has 3800 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 358 cm. Playing 1080P is also no problem for the projector.
|
| Display Type |
3 x LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
3800 |
Screen |
1267 Lux (200 cm Screen width) |
| Contrast |
16000:1 |
16000:1
|
| Black Level |
0,2375 min. Lumen |
0,079 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
WUXGA 1920 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
210W UHE Lampe
Article Nr.: ELPLP96 / V13H010L96 / ELPLP97 / V13H010L97
|
|
| Light Life |
8000 h. / 17000 h. Eco |
| Operating Costs |
|
|
296 cm (no Zoom)
|
 |
|
Lux: |
1267 Lux |
|
Room light max.: |
253 Lux |
|
Candela pro m²: |
404 cd/m² |
|
Foot-Lamberts: |
118 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom 1,2 |
| Objective |
F=1,49-1,72 f=16,9-20,28 mm |
| Throw Ratio |
1,48:1 |
| Audio |
- |

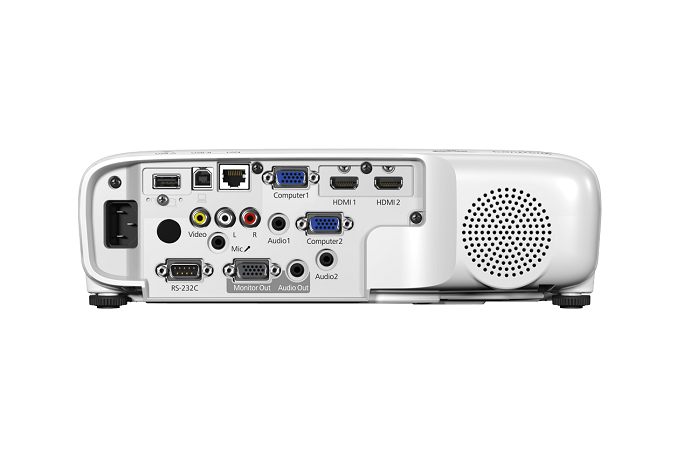

| Connections |
2x HDMI in
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB-B in
USB-A in
RS232C Din 9 pin in
RJ45 in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
327W Normal |
| Size WxHxD |
302 x 87 x 249 mm (11,9"x3,4"x9,8") 6,54 L/dm³
|
| Operating Noise |
37 / 28 dB in Eco Mode |
Key: 171 cm |
Key: 171 cm | | Key: 171 cm |
| |
|
|
| Weight |
2,80 kg / 4,41 lbs. |
| Keystone |
Vert.: +/-30°
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
118 fL
/ max. 537 cm screen width |
| Candela m² |
404 cd/m² |
| Features |
 Full HD 1080P compatible
Eco Mode
Wi-Fi network compatible.
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Epson EB-118 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
53 |
Weight: |
|
85 |
| Contrast: |
|
1 |
dB: |
|
59 |
| Black level: |
|
97 |
Power cons.: |
|
38 |
| Picture Total Points: | 50 |
Projector Total Points: | 61 |
|
| Popularity Top 100 |
|
| Points: |
|
12 |
| Ranking: |
824 (From: 7662) |
|
|
|
|
|
| Status |
2022 Discontinued (EOL) // Last update of the data: 2023-08-30
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (5.47 MB)

|
Epson Website
