Brief Introduction
Beta 2.5 |

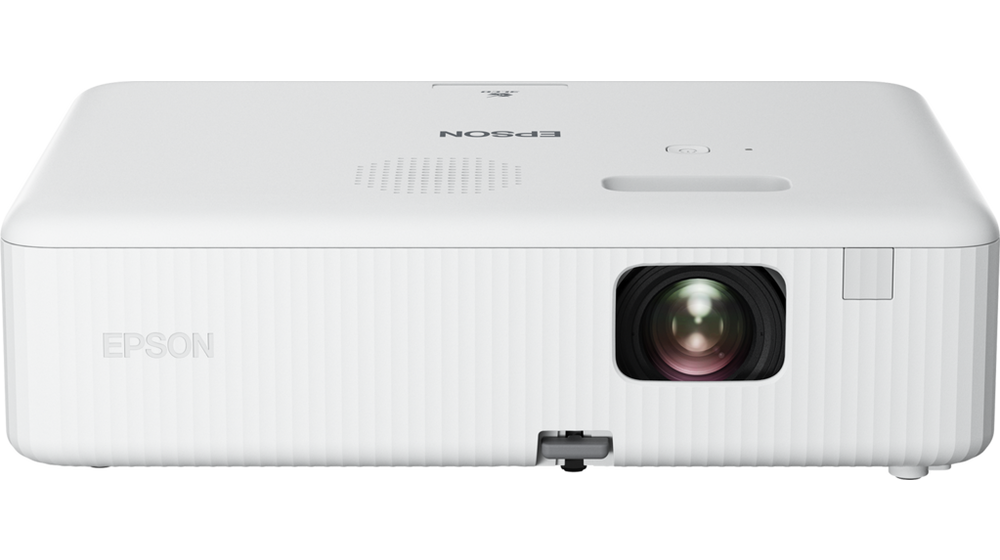

The standard portable Epson CO-FD01 LCD projector has 3000 Ansi-Lumen, a contrast of 350:1 and a HDTV 1920 x 1080 resolution. The lamp life is up to 12000 hours, which is equivalent to 16.4 years at 2 hours per day. The projector is equipped with an integrated media player, so direct playback of files will not be a problem. Horizontal and vertical keystone correction makes image adjustment childs play. An image width of up to 556 cm is possible as the projector has 3000 Ansi lumens. However, if room light is available, the image should be a maximum of 371 cm wide. Furthermore, the projector can play 1080P without any problems.
|
| Display Type |
3 x 0,59" LCD TFT Panel mit MLA (D10)
HDTV 16/9 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
3000 / 2000 im Eco Mode |
Screen |
1333 Lux (200 cm Screen width) |
| Contrast |
350:1 full on/off |
350:1 full on/off
|
| Black Level |
8,5714 min. Lumen |
3,833 min. Lumen |
| Offset |
37,50% show
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p
Media player formats: jpg
bmp
gif
png
avi |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
188W UHE Lamp
Article Nr.: CP1TRTBSHA85
|
|
| Light Life |
6000 h. / 12000 h. ECO |
| Operating Costs |
-
|
|
238 - 322 cm
|
 |
|
Lux: |
1333 Lux |
|
Room light max.: |
267 Lux |
|
Candela pro m²: |
425 cd/m² |
|
Foot-Lamberts: |
124 fL |
|
 |
| 42 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom Digital x1,35 |
| Objective |
- |
| Throw Ratio |
1,19-1,61:1 show |
| Audio |
5W |
| Connections |
HDMI 1.4 in
Mini Jack Audio in und out
USB-A in
USB-B in (Service)
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
270W Max / 214W Eco |
| Size WxHxD |
295 x 87 x 211 mm (11,6"x3,4"x8,3") 5,42 L/dm³
|
| Operating Noise |
38 / 29 dB in Eco Mode |
Key: 179 cm |
Key: 137 cm |
| Key: 137 cm |
| |
|
|
| Weight |
2,40 kg / 4,41 lbs. |
| Keystone |
Vert.: +/-30°
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
V-sync: 100-120 Hz
|
| Foot-Lamberts |
124 fL
/ max. 556 cm screen width |
| Candela m² |
425 cd/m² |
| Features |
 Full HD 1080P compatible
Integrated Mediaplayer
Blackboard Modus
Eco Mode
Kensington Slot
sRGB
Optional Wi-Fi network compatible.
Optional LAN network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Epson CO-FD01 compared to others current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
41 |
Weight: |
|
86 |
| Contrast: |
|
1 |
dB: |
|
55 |
| Black level: |
|
1 |
Power cons.: |
|
52 |
| Picture Total Points: | 14 |
Projector Total Points: | 64 |
|
| Popularity Top 100 |
|
| Points: |
|
3 |
| Ranking: |
432 (From: 849) |
|
|
|
|
|
| Status |
2023 Current model // Last update of the data: 2024-06-19
