Brief Introduction
Beta 2.5 |

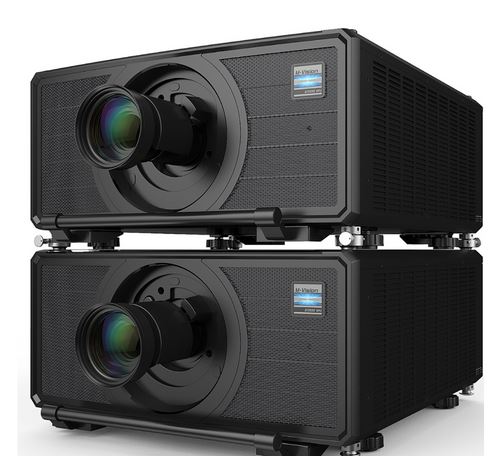

The Digital Projection model M-Vision 27000 WU is a DLP laser projector with WUXGA 1920 x 1200 resolution and a contrast of 10000:1. The service life is 20000 hours due to the laser, which is over 13.7 years if enjoyed for four hours a day. The projector also offers a lens shift function that makes image adjustment childs play. 24000 Ansi lumens ensure that a picture width of 1574 cm is also possible. The projector creates rooms with residual light with a smaller image width, we recommend a maximum of 1049 cm. In the event that the image is still too small, the projector offers integrated edge blending software, which allows several projectors to project a large image together. Playing 1080P and 3D is also no problem for the projector. Even projection onto the ceiling is possible thanks to the 360° projection.
|
| Display Type |
1 x 0,96" DarkChip 3™ DMD™
WUXGA 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
24000 |
Screen |
10667 Lux (200 cm Screen width) |
| Contrast |
10000:1 full on/off |
10000:1 full on/off
|
| Black Level |
2,4000 min. Lumen |
1,067 min. Lumen |
| Lens shift |
Vert.: +/-50% Hori.: +/-15%
|
| Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Event | Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
Laser
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € Laser
|
|
|
 |
|
Lux: |
10667 Lux |
|
Room light max.: |
2133 Lux |
|
Candela pro m²: |
3395 cd/m² |
|
Foot-Lamberts: |
991 fL |
|
 |
| 56 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
Nein |
| Connections |
2 x HDMI
2 x Display Port
3G SDI in and out
HDBaseT
RJ45
3D Sync ind und out
RS232C
3,5 mm Stereo Jack
12V Trigger |
| Ceiling Mounting |
Yes, is possible. |
| Power |
1900W/ 1200W in Eco Mode |
| Size WxHxD |
748 x 248 x 530 mm (29,4"x9,8"x20,9") 98,32 L/dm³
|
| Operating Noise |
50 / 48 dB in Eco Mode |
Shift: 56 cm
|
Shift: 30 cm
|
|
Shift: 30 cm
|
| |
|
|
| Weight |
54,00 kg / 119,05 lbs. |
| Keystone |
- |
| Illumination |
87% |
| Frequenz |
Range max.: 165 MHz |
| Foot-Lamberts |
991 fL
/ max. 1574 cm screen width |
| Candela m² |
3395 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
High Dynamic Range (HDR)
Warping
360° installable
24/7 continuous operation capable
Edge Blending
Picture-in-Picture
Password protection
PJLink™
Lan network compatible.
Crestron®-Software compatible.
Blue Laser Phosphor + 4-segment colour wheel
AMX
DICOM
Picture-in-picture
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Digital Projection M-Vision 27000 WU compared to others current "Event" projectors. |
| Ansi-Lumen: |
|
30 |
Weight: |
|
76 |
| Contrast: |
|
1 |
dB: |
|
50 |
| Black level: |
|
91 |
Power cons.: |
|
67 |
| Picture Total Points: | 41 |
Projector Total Points: | 64 |
|
| Popularity Top 100 |
|
| Points: |
|
15 |
| Ranking: |
121 (From: 153) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| 120-628 | 4-7:1 | 800-1400 m |
50-30% |
+/-15% |
Powered |
| 120-627 | 2-4:1 | 400-800 m |
50-30% |
+/-15% |
Powered |
| 120-626 | 1.5-2:1 | 300-400 m |
50-30% |
+/-15% |
Powered |
| 123-418 | 6.9-10.3:1 | 1380-2060 m |
+/-50% |
+/-15% |
|
| 120-625 | 1.2-1.56:1 | 240-312 m |
+/-50% |
+/-15% |
Powered |
| 120-624 | 0.9-1.2:1 | 180-240 m |
+/-45% |
+/-15% |
Powered |
|
| Status |
2023 Current model // Last update of the data: 2025-03-03
Created: 2023-07-12 13:09:53
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (14.81 MB)

|
Digital Projection Website
