Brief Introduction
Beta 2.5 |

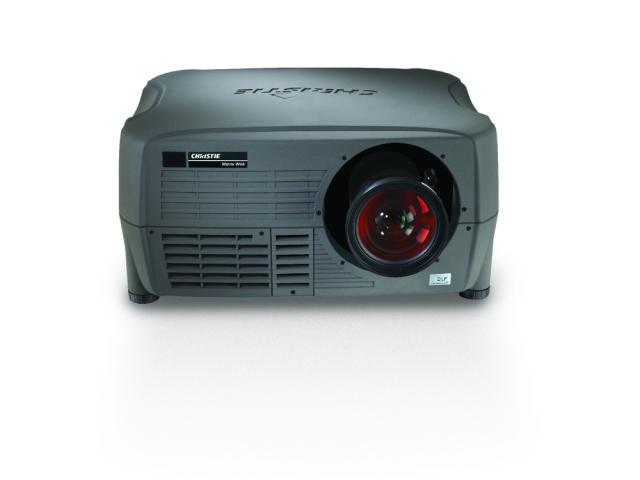

A brief introduction to the MATRIX WU5: The Christie stationary DLP projector offers 5100 Ansi lumens, a contrast of 1500-2000:1 and a WUXGA 1920 x 1200 resolution. Thanks to the brightness of 5100 Ansi lumens, an image width of 726 cm is possible. The projector can also handle slightly brighter rooms with a smaller picture width (we recommend max. 484 cm). If the image width is not sufficient, the projector offers integrated edge blending software, which allows several projectors to project a large image together. Even 1080P video signals are no problem for the projector. The model was built by Christie in 2009 and is no longer current.
|
| Display Type |
3 x 0,96" DC3 DLP Chip
WUXGA 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
5100 |
Screen |
2267 Lux (200 cm Screen width) |
| Contrast |
1500-2000:1 full on/off |
1500-2000:1 full on/off
|
| Black Level |
3,4000 min. Lumen |
1,514 min. Lumen |
| Offset |
-
|
| Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel
QXGA 2048 x 1536 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
1000W Xenon Lamp
|
|
| Light Life |
1500 h. |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
2267 Lux |
|
Room light max.: |
453 Lux |
|
Candela pro m²: |
723 cd/m² |
|
Foot-Lamberts: |
211 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
Nein |
| Connections |
DVI-I in
5 x BNC RGBHV in
S-Video in
Cinch Video in
3 x RS232C in
RS422 in
RJ45
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
1600W |
| Size WxHxD |
466 x 313 x 660 mm (18,3"x12,3"x26") 96,27 L/dm³
|
| Operating Noise |
- |
|
| Weight |
34,00 kg / 74,96 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
211 fL
/ max. 726 cm screen width |
| Candela m² |
723 cd/m² |
| Features |
 Full HD 1080P compatible
Freeze
Gamma correction
Edge Blending
Picture-in-Picture
Password protection
Remote control with laser pointer
Lan network compatible.
|
|
- |
In Comparison
The Christie MATRIX WU5 compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
50 |
Weight: |
|
85 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
90 |
Power cons.: |
|
77 |
| Picture Total Points: | 47 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
18 |
| Ranking: |
1463 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
|
| Status |
2009 Discontinued (EOL) // Last update of the data: 2025-03-03
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (14.11 MB)

|
Christie Website
