Brief Introduction
Beta 2.5 |

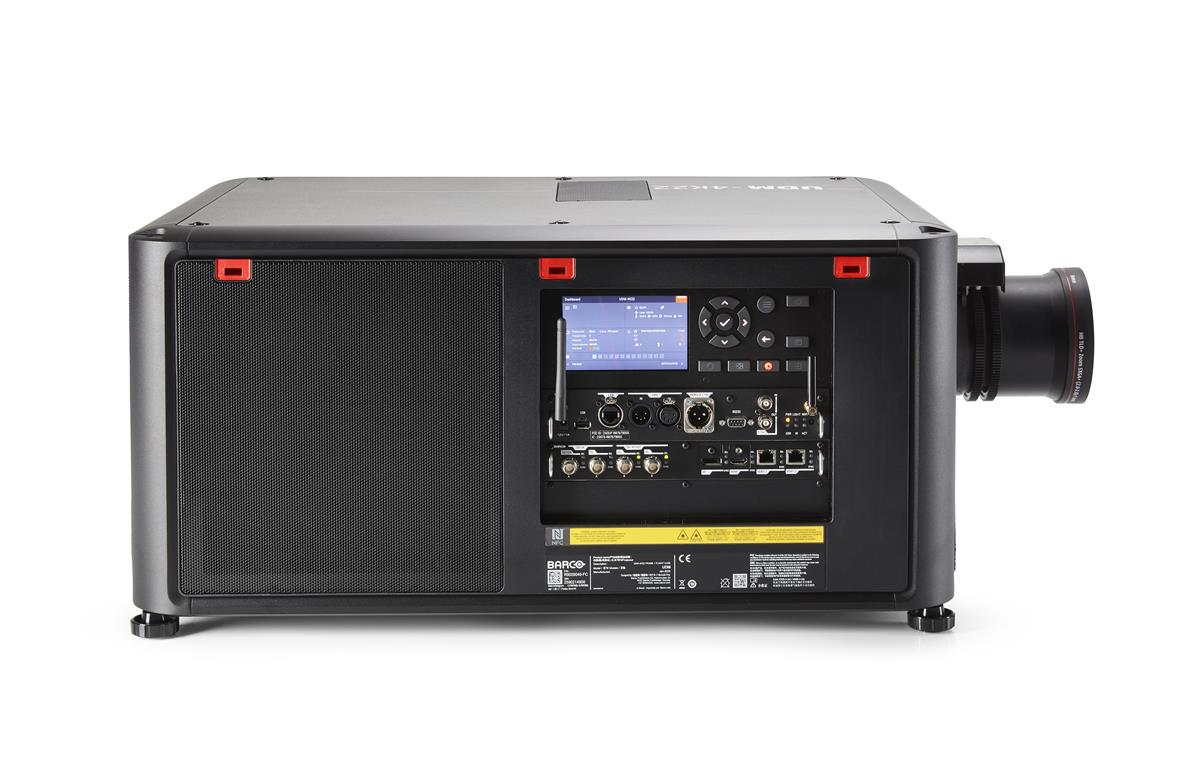

The large-screen UDM-W30 3D laser DLP has 26000 Ansi lumens, a contrast of 2200:1 / Barco Dyna Black 20000:1 and a WUXGA 1920 x 1200 resolution. The manufacturer specifies a laser life of 20000 hours, which is over 13.7 years if enjoyed for four hours a day. The integrated media player can play files directly. The projector also offers a lens shift function for flexible projection adjustment without loss of quality. The projector can illuminate images up to 1638 cm wide thanks to its 26000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, max. 1092 cm is recommended. If the image width is not sufficient, the projector offers integrated edge blending software, with which several projectors can project a large image together. The model is also compatible with Full HD 1080P and 4K (compressed) as well as 3D, meaning that all Blu-ray formats currently available can be recognized by the projector.
|
| Display Type |
3 x 0,96" UHD-3-Chip-DLP
WUXGA 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
26000 27,000 center lumens / 29,000 ISO lumens |
Screen |
11556 Lux (200 cm Screen width) |
| Contrast |
2200:1 / Barco Dyna Black 20000:1 |
2200:1 / Barco Dyna Black 20000:1
|
| Black Level |
1,3000 min. Lumen |
5,253 min. Lumen |
| Lens shift |
Vert.: +130% -100% Hori.: +/-40%
|
| Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel
UHD (4K2K+) 3840 x 2400 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), 3D, EDTV 480p, 576p
Media player formats: 24hz to 120 Hz 4K/4KUHD (4096 x 2160 / 3860 x 2400) to 240hz WQXGA (2560 x 1600) |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) | 2D-zu-3D Video Converter |
|
| Application |
Event | Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
Laser-Phosphor mit anorganischem Phosphorrad
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € Laser
|
|
|
 |
|
Lux: |
11556 Lux |
|
Room light max.: |
2311 Lux |
|
Candela pro m²: |
3680 cd/m² |
|
Foot-Lamberts: |
1074 fL |
|
 |
| 146 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
- |

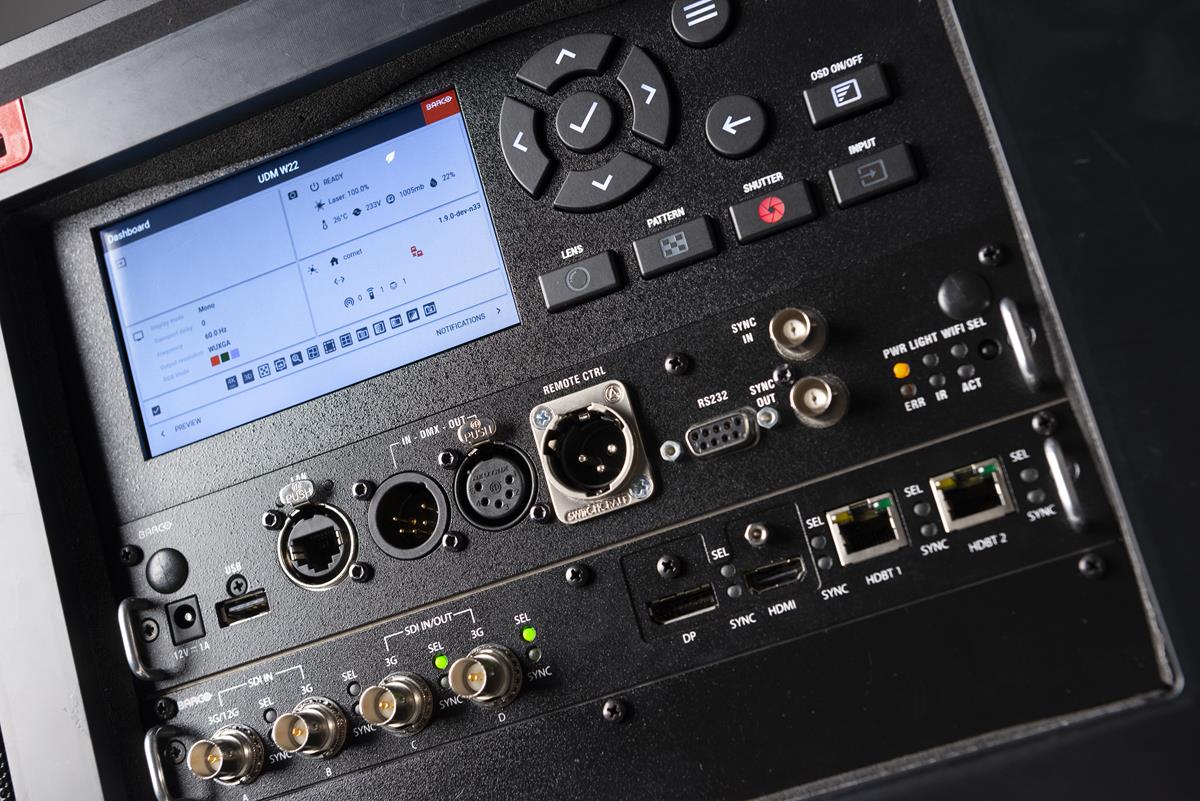

| Connections |
2x HDBaseT
HDMI2.0 (HDCP2.2, HDR10)
DP 1.2 (HDCP1.3)
Quad 3G/12G SDI
BarcoLink ULTRA
Quad DP1.2
Glasfaser-SFP
RS232C Din 9 pin in
DMX in und out
XLR-drahtgestützt Fernbedienung
RJ45 Lan
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
1900W |
| Size WxHxD |
725 x 339 x 540 mm (28,5"x13,3"x21,3") 132,72 L/dm³
|
| Operating Noise |
49dB |
Shift: 146 cm
|
Shift: 80 cm
|
|
Shift: 80 cm
|
| |
|
|
| Weight |
48,00 kg / 105,82 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
1074 fL
/ max. 1638 cm screen width |
| Candela m² |
3680 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Integrated Mediaplayer
High Dynamic Range (HDR)
Warping
360° installable
24/7 continuous operation capable
Edge Blending
Picture-in-Picture
Remote control with backlight
Wi-Fi network compatible.
Lan network compatible.
ScenergiX edge blending
picture by picture - two sources at the same time
integrated web server
Android
iOS
Barcolink
DMX
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Barco UDM-W30 compared to others current "Event" projectors. |
| Ansi-Lumen: |
|
34 |
Weight: |
|
79 |
| Contrast: |
|
1 |
dB: |
|
53 |
| Black level: |
|
95 |
Power cons.: |
|
67 |
| Picture Total Points: | 43 |
Projector Total Points: | 66 |
|
| Popularity Top 100 |
|
| Points: |
|
25 |
| Ranking: |
58 (From: 153) |
|
|
|
|
|
|
Optional Lenses |
|
|
| Status |
2022 Current model // Last update of the data: 2025-02-10
Created: 2023-01-04 13:24:32
|
