Brief Introduction
Beta 2.5 |
The large-screen AL-FU13KA 3D laser DLP has 13000 Ansi lumens, a contrast of 100000:1 and a WUXGA 1920 x 1200 resolution. The manufacturer specifies a laser service life of 20000 hours, which is over 13.7 years with a daily viewing time of 4 hours. The projector also offers a lens shift function for flexible projection adjustment without loss of quality. 13000 Ansi lumens ensure that a picture width of 1158 cm is also possible. The projector manages rooms with residual light with a smaller image width, we recommend a maximum of 772 cm. If the image is still too small, the integrated edge blending software can help to project a larger image with additional projectors. The model is also Full HD 1080P and 3D compatible, meaning it can even project Blu-rays onto the ceiling using 360° projection. The model built in 2019 is no longer offered by Appotronics.
|
| Display Type |
1 x 0,67" DMD DLP Chip
WUXGA 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
13000 |
Screen |
5778 Lux (200 cm Screen width) |
| Contrast |
100000:1 |
100000:1
|
| Black Level |
0,1300 min. Lumen |
0,058 min. Lumen |
| Lens shift |
Vert.: +89% -56% Hori.: +/-21%
|
| Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Event | Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
Laser
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € Laser
|
|
|
 |
|
Lux: |
5778 Lux |
|
Room light max.: |
1156 Lux |
|
Candela pro m²: |
1840 cd/m² |
|
Foot-Lamberts: |
537 fL |
|
 |
| 100 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
- |
| Connections |
HDMI in
DVI in
D-sub 15pin in und out
5BNC
RJ45 in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
1200W |
| Size WxHxD |
692 x 180 x 535 mm (27,2"x7,1"x21,1") 66,64 L/dm³
|
| Operating Noise |
39 / 35 dB in Eco Mode |
Shift: 100 cm
|
Shift: 42 cm
|
|
Shift: 42 cm
|
| |
|
|
| Weight |
35,00 kg / 77,16 lbs. |
| Keystone |
Vert.: +/-20°
Hori.: +/-20°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
537 fL
/ max. 1158 cm screen width |
| Candela m² |
1840 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
360° installable
24/7 continuous operation capable
Edge Blending
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Appotronics AL-FU13KA compared to others not current "Event" projectors. |
| Ansi-Lumen: |
|
10 |
Weight: |
|
88 |
| Contrast: |
|
2 |
dB: |
|
76 |
| Black level: |
|
100 |
Power cons.: |
|
88 |
| Picture Total Points: | 37 |
Projector Total Points: | 84 |
|
| Popularity Top 100 |
|
| Points: |
|
40 |
| Ranking: |
157 (From: 576) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| 6 | 4.68-7.96:1 | 936-1592 m |
|
|
Powered |
| 5 | 2.86-4.85:1 | 572-970 m |
|
|
Powered |
| 4 | 1.62-2.92:1 | 324-584 m |
|
|
Powered |
| 3 | 1.3-1.68:1 | 260-336 m |
|
|
Powered |
| 1 | 0.62:1 | 124 m |
|
|
No Zoom |
| 2 | 0.8:1 | 160 m |
|
|
No Zoom |
|
| Status |
2019 Discontinued (EOL) // Last update of the data: 2024-10-02
Created: 2019-02-28 23:51:49
|
| Data |

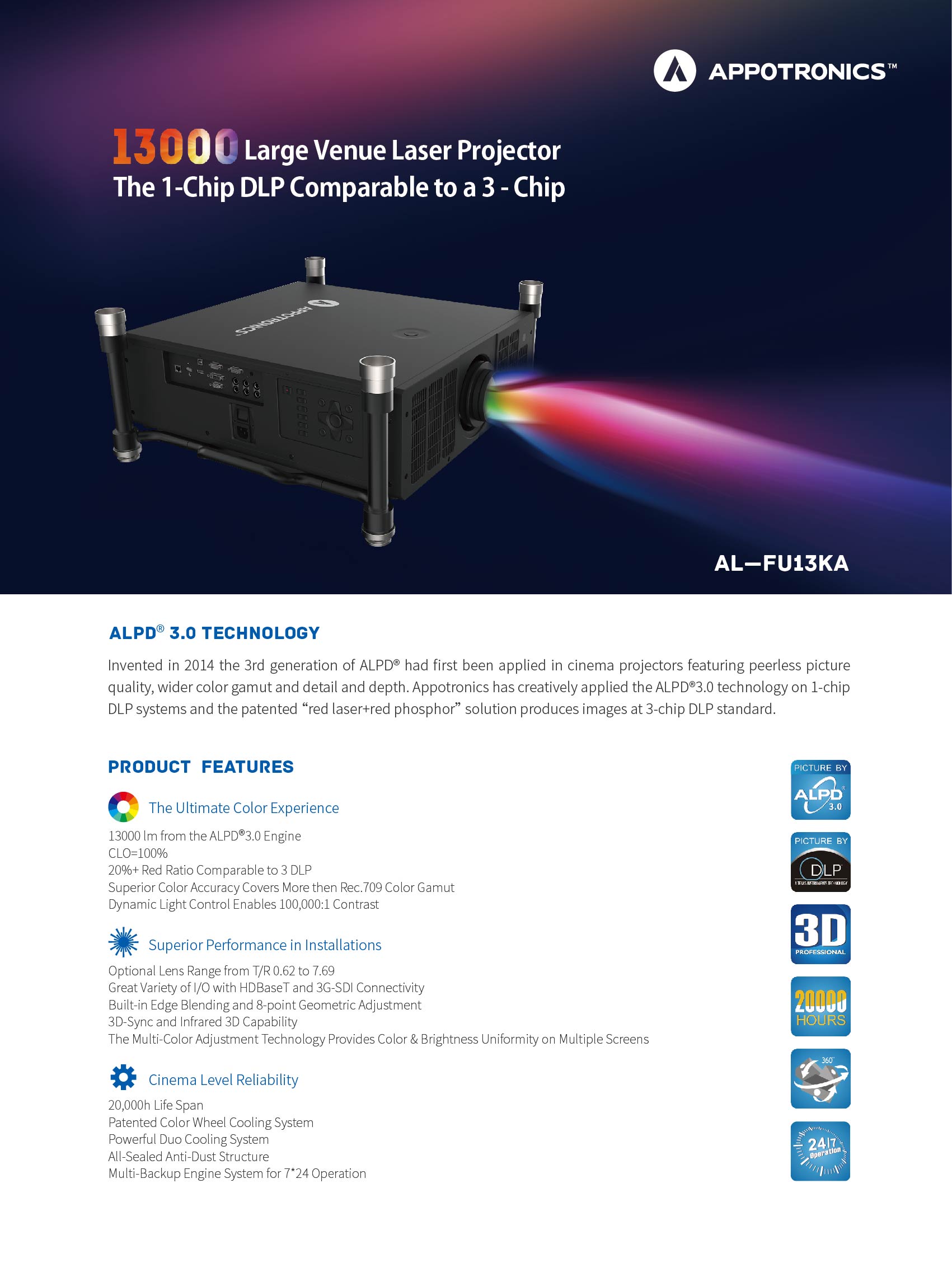

 Product Sheet english
Product Sheet english HC
User Manual english (5.09 MB)

|
Appotronics Website
